PIC SOLUTION
PIC Solution SAS was founded in France in 2004 as a company specializing in supercritical fluid chromatography. The company is based in Avignon, France where the analytical and preparative SFC systems are manufactured. Equipment ranges from 10 ml/min analytical SFC units to preparative SFC units with flow rates up to 1000 ml/min. More recently, PIC Solution has started a range of SFE equipment, mainly focused on pharmaceutical and nutraceutical applications.

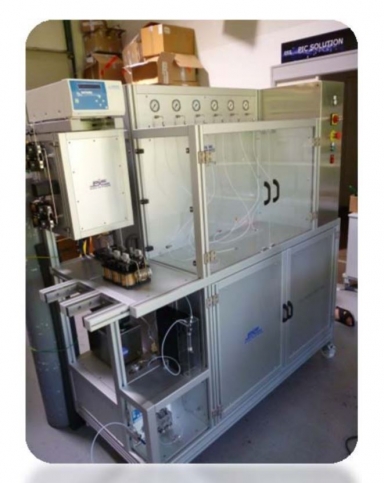

SFC-PICLab PREP 100, 150, 200 , 400 and 600 SFC Systems.
The SFC-PICLab PREP systems are skid-mounted preparative SFC systems. The user-friendly software has an intuitive interface which allows data acquisition and processing, mobile phase and flow gradients with integrated column and co-solvent selection. Both UV and quadrupole mass spectrometric detection are available.
Software for the SFC-PICLab PREP systems has been designed to be powerful yet simple to use. The platform is common between all PIC Solution PREP systems, making it easy for transition from small to largescale separations. Collection points can be set up on-the-fly or post-run using a graphical interface and can be modified during a preparative separation, as can the injection volume and number of stacked injection cycles. Stacked injections can be set up rapidly using a graphical simulation of three chromatograms to facilitate choice of the injection position relative to both major and minor components.
Specifications
Flow Rate SFC-PICLab PREP 200: 200 ml/min
SFC-PICLab PREP 400: 400 ml/min
SFC-PICLab PREP 600: 600 ml/min
SFC-PICLab PREP 1000: 1000 ml/min
Max Pressure 300 bar
Co-solvent selection Selected from 4
Columns Selected from 4 (PREP 200) or 2
Temperature 20 to 60°C
Detection UV / MS (4 mass values)
CO2 Recycle Standard
Power 2080V ; 60 Hz ; 3-phase
Dimentions SFC-PICLab PREP 200: 145 x 78 x 180 cm
SFC-PICLab PREP 400: 190 x 90 x 180 cm
SFC-PICLab PREP 600: 190 x 90 x 180 cm
